Запуск Jekins в docker-compose

Делаю:
2025.03.08

Взято на основе

[Cbtnuggets] [Knox Hutchinson] DevOps Tools Engineer (Exam 701-100) Online Training [ENG, 2024]

8. Jenkins - The Build Stage

$ mkdir -p ~/projects/docker/jenkins/
$ cd ~/projects/docker/jenkins/

docker-compose.yaml

$ cat << EOF > docker-compose.yaml
version: ‘3'
services:
  jenkins:
    container_name: jenkins
    build:
      context: .
      dockerfile: jenkins.dockerfile
    ports:
      - '8080:8080'
    environment:
      - JAVA_OPTS=-Dhudson.security.csrf.GlobalCrumbIssuerConfiguration.DISABLE_CSRF_PROTECTION=true
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - jenkins_home:/var/jenkins_home
    networks:
      - proxy_net

  nginx-proxy-manager:
    container_name: nginx-proxy-manager
    image: jc21/nginx-proxy-manager:latest
    restart: unless-stopped
    ports:
      - '80:80'
      - '81:81'
      - '443:443'
    environment:
      DB_SQLITE_FILE: '/data/database.sqlite'
    volumes:
      - ./data:/data
      - ./letsencrypt:/etc/letsencrypt
    networks:
      - proxy_net

volumes:
  jenkins_home:
  data:
  letsencrypt:

networks:
  proxy_net:
    driver: bridge
EOF

// Валидация
$ docker-compose -f docker-compose.yaml config --quiet && printf "OK\n" || printf "ERROR\n"

jenkins.dockerfile

$ cat << EOF > jenkins.dockerfile
FROM jenkins/jenkins:lts
USER root

# Install Docker in the Jenkins container
RUN apt-get update && \
    apt-get install -y docker.io && \
    apt-get clean

# Add Jenkins user to the Docker group and systemd-journal group
RUN usermod -aG docker,systemd-journal jenkins

USER jenkins
EOF

$ docker-compose build jenkins
$ docker-compose up -d

// Получить пароль
$ docker exec jenkins cat /var/jenkins_home/secrets/initialAdminPassword

// Jenkins
http://localhost:8080/

// Nginx Proxy Manager
http://localhost:81/login

login: [email protected]
password: changeme

Available plugins ->

// Должны быть
- Git plugin
- Github plugin

// Добавить
- Docker Pipeline

// Dashboard > Manage Jenkins > System > Jenkins URL // Указать адрес для jenkins

GitHub

// No GitHub Apps
https://github.com/settings/apps

// New
https://github.com/settings/apps/new

GitHub App name: JenkinsCiLab1
Homepage URL: https://1fb5-34-90-164-212.ngrok-free.app/
Webhook URL: https://1fb5-34-90-164-212.ngrok-free.app/github-webhook/

Repository permissions

Actions -> Read-only
Metadata -> Read-only
Pull requests -> Read-only

+ Push + Pull

Generate a private key

Install Application

Jenkins

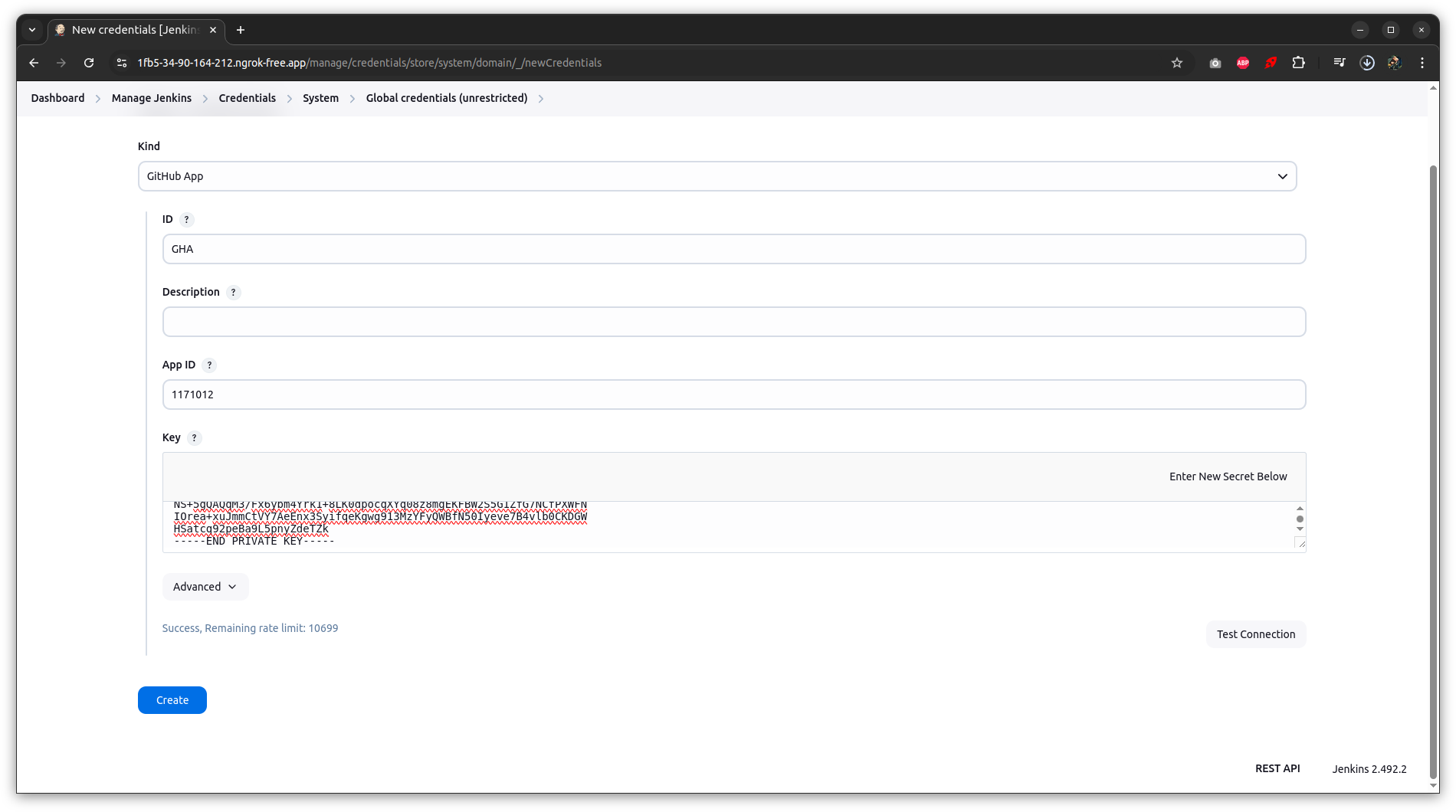

Dashboard > Manage Jenkins > Credentials

System > Global credentials (unrestricted) > Add Credentials

Kind -> Github App

Id -> GHA

App ID -> Github App ID

Key -> выполнить

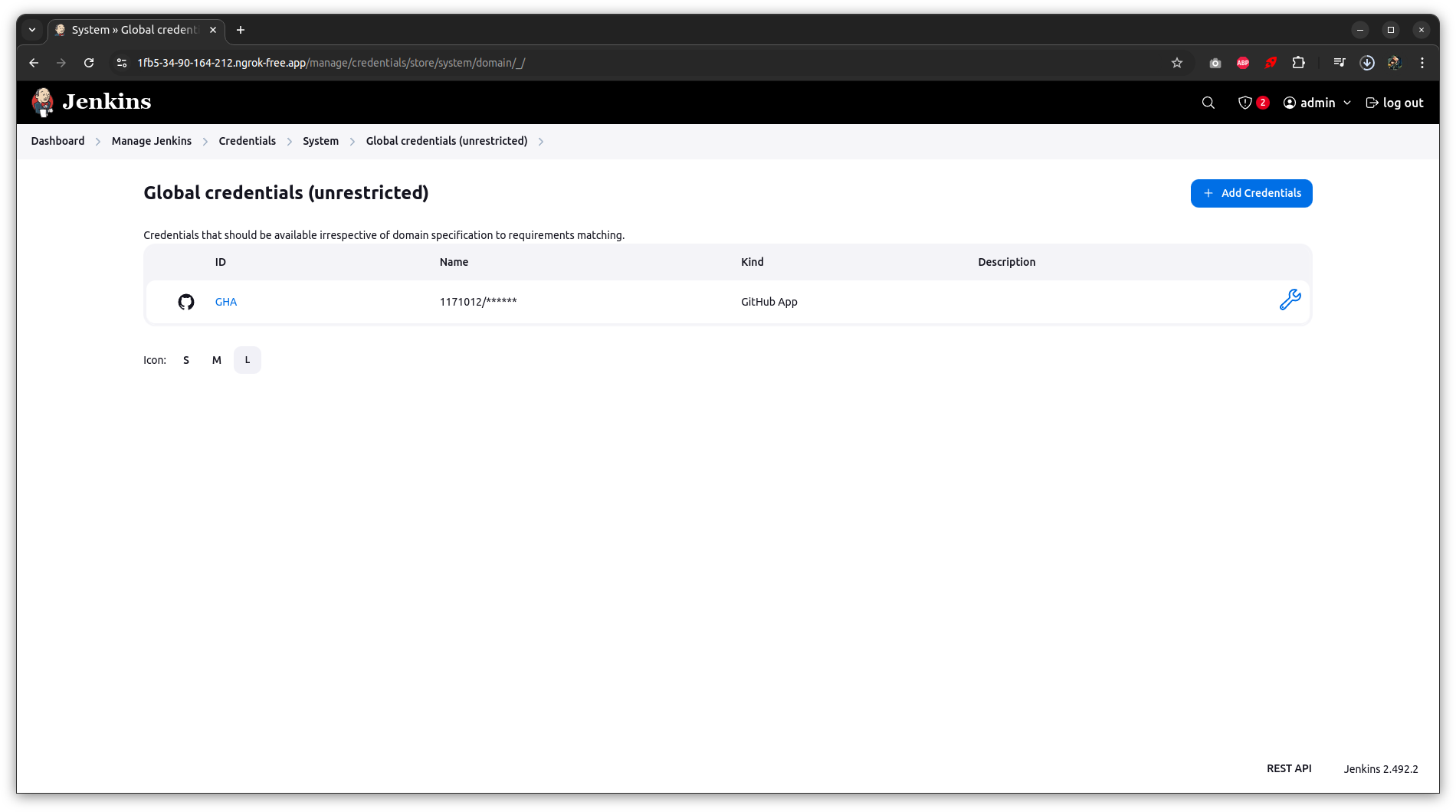

Jenkins Credentials

$ openssl pkcs8 -topk8 -inform PEM -outform PEM -in jenkinscilab1.2025-03-08.private-key.pem -out new-key.pem -nocrypt

Клонирую

$ git clone https://github.com/webmakaka/cats-app

Создаю приватное.

Добавляю Jenkinsfile в приватное repo.

jenkinsfile

pipeline {
    agent any
    stages {
      stage('Clone Repository') {
        steps {
          git branch: 'main',
          url: 'https://github.com/wildmakaka/cats-app.git',
          credentialsId: 'GHA'
          }
      }
      stage('Build Docker Image') {
        steps {
          script {
                sh "docker build -t wildmakaka/cats-app:${env.BUILD_ID} ."
              }
            }
        }
    }
    post {
      always {
        cleanWs()
      }
  }
}

credentialsId - GHA

Jenkins

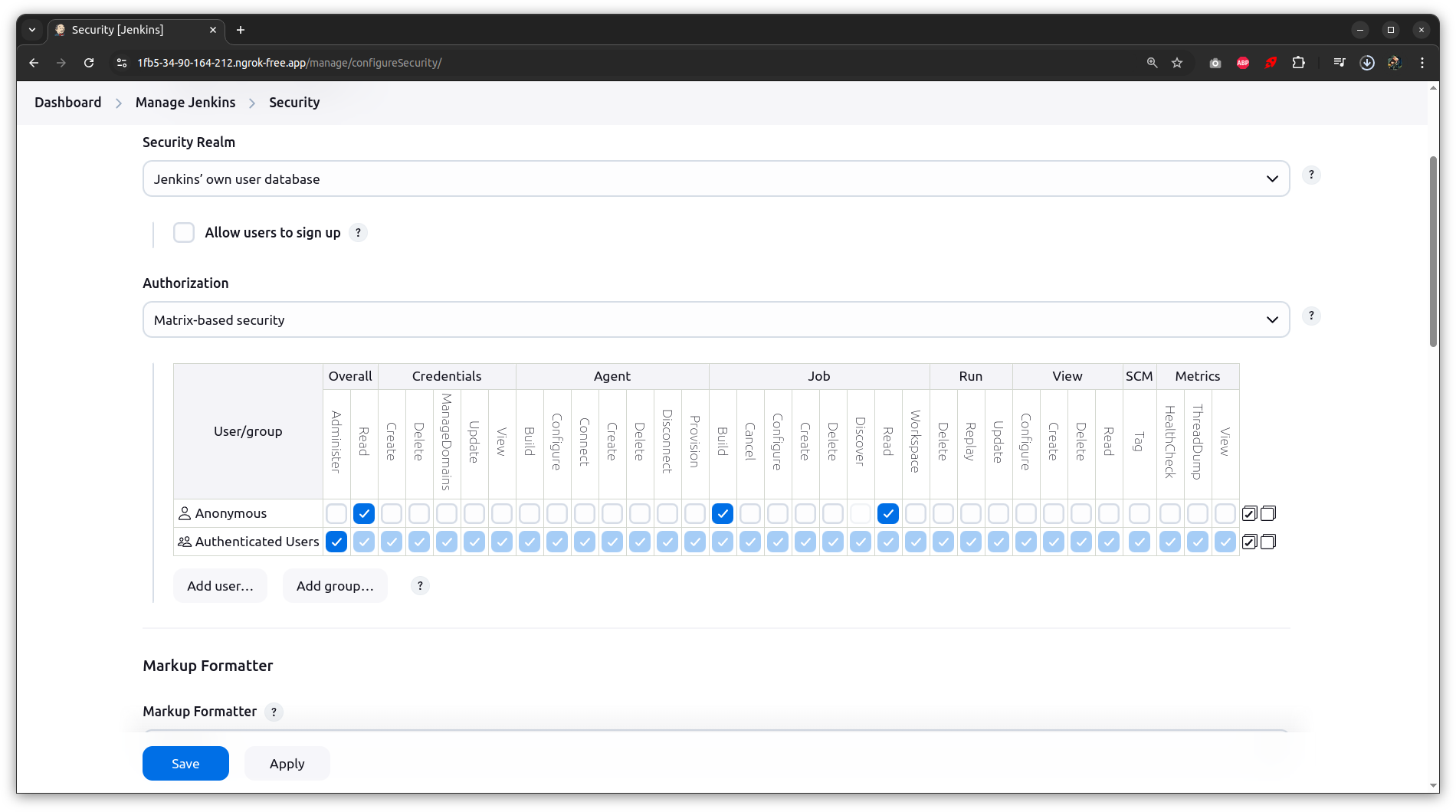

Dashboard > Manage Jenkins > Security

Jenkins Security

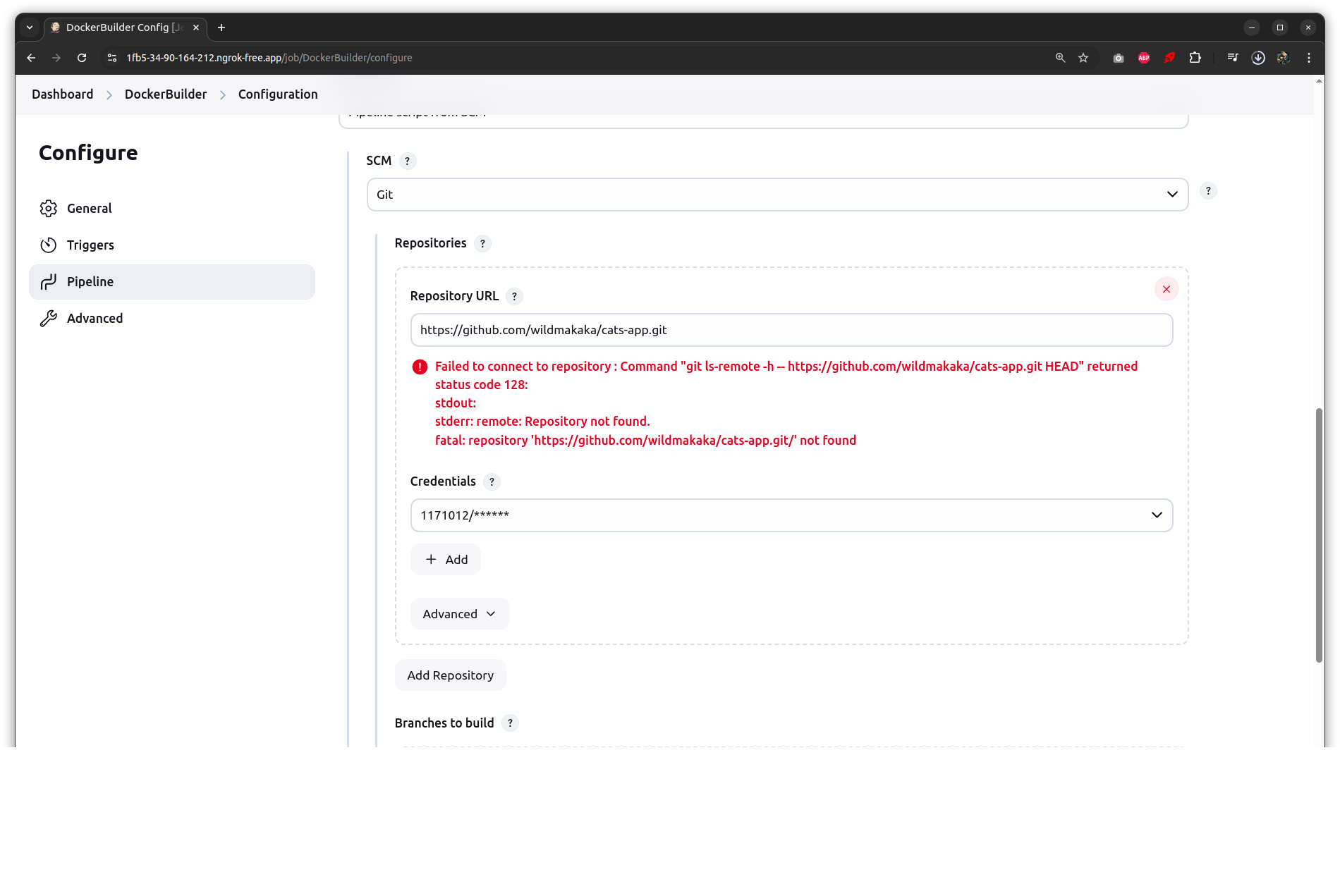

Dashboard > All > New Item

Name: DockerBuilder
Type: Pipeline

Jenkins Pipeline

Triggers
+ GitHub hook trigger for GITScm polling

permission denied while trying to connect to the Docker daemon socket at unix:///var/run/docker.sock
***
dial unix /var/run/docker.sock: connect: permission denied

// Host
$ ls -al /var/run/docker.sock
srw-rw---- 1 root docker 0 Mar  8 17:33 /var/run/docker.sock

$ docker exec -it jenkins bash

// Container
$ ls -al /var/run/docker.sock
srw-rw---- 1 root 996 0 Mar  8 17:33 /var/run/docker.sock

$ sudo usermod -aG docker $USER
$ sudo chown $USER /var/run/docker.sock

11. Continuous Delivery with Jenkins, Github, and K8s

$ mkdir -p /var/lib/jenkins/.kube/config

Копируем kubeconfig -> /var/lib/jenkins/.kube/config

$ sudo chmod 777 /var/lib/jenkins/.kube/

docker-compose.yaml

$ cat << EOF > docker-compose.yaml
version: ‘3'
services:
  jenkins:
    container_name: jenkins
    build:
      context: .
      dockerfile: jenkins.dockerfile
    ports:
      - '8080:8080'
    environment:
      - JAVA_OPTS=-Dhudson.security.csrf.GlobalCrumbIssuerConfiguration.DISABLE_CSRF_PROTECTION=true
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - jenkins_home:/var/jenkins_home
      - /var/lib/jenkins/.kube/config:/var/jenkins_home/.kube/config
    networks:
      - proxy_net

  nginx-proxy-manager:
    container_name: nginx-proxy-manager
    image: jc21/nginx-proxy-manager:latest
    restart: unless-stopped
    ports:
      - '80:80'
      - '81:81'
      - '443:443'
    environment:
      DB_SQLITE_FILE: '/data/database.sqlite'
    volumes:
      - ./data:/data
      - ./letsencrypt:/etc/letsencrypt
    networks:
      - proxy_net

volumes:
  jenkins_home:
  data:
  letsencrypt:

networks:
  proxy_net:
    driver: bridge
EOF

jenkins.dockerfile

$ cat << EOF > jenkins.dockerfile
FROM jenkins/jenkins:lts
USER root

# Install Docker in the Jenkins container
RUN apt-get update && \
    apt-get install -y docker.io && \
    apt-get clean

# Add Jenkins user to the Docker group and systemd-journal group
RUN usermod -aG docker,systemd-journal jenkins

RUN apt-get update && \
    apt-get install -y curl && \
    curl -LO https://storage.googleapis.com/kubernetes-release/release/$(curl -s https://storage.googleapis.com/kubernetes-release/release/stable.txt)/bin/linux/amd64/kubectl && \
    chmod +x kubectl && \
    mv kubectl /usr/local/bin/ && \
    apt-get clean

ENV KUBECONFIG=/var/jenkins_home/.kube/config

USER jenkins
EOF

$ docker-compose up -d

Jenkins Pipeline

Dashboard > Manage Jenkins > Credentials

System > Global credentials (unrestricted) > Add Credentials

Kind: Username with password

Scope: Global (Jenkins, nodes, items, all child items, etc)

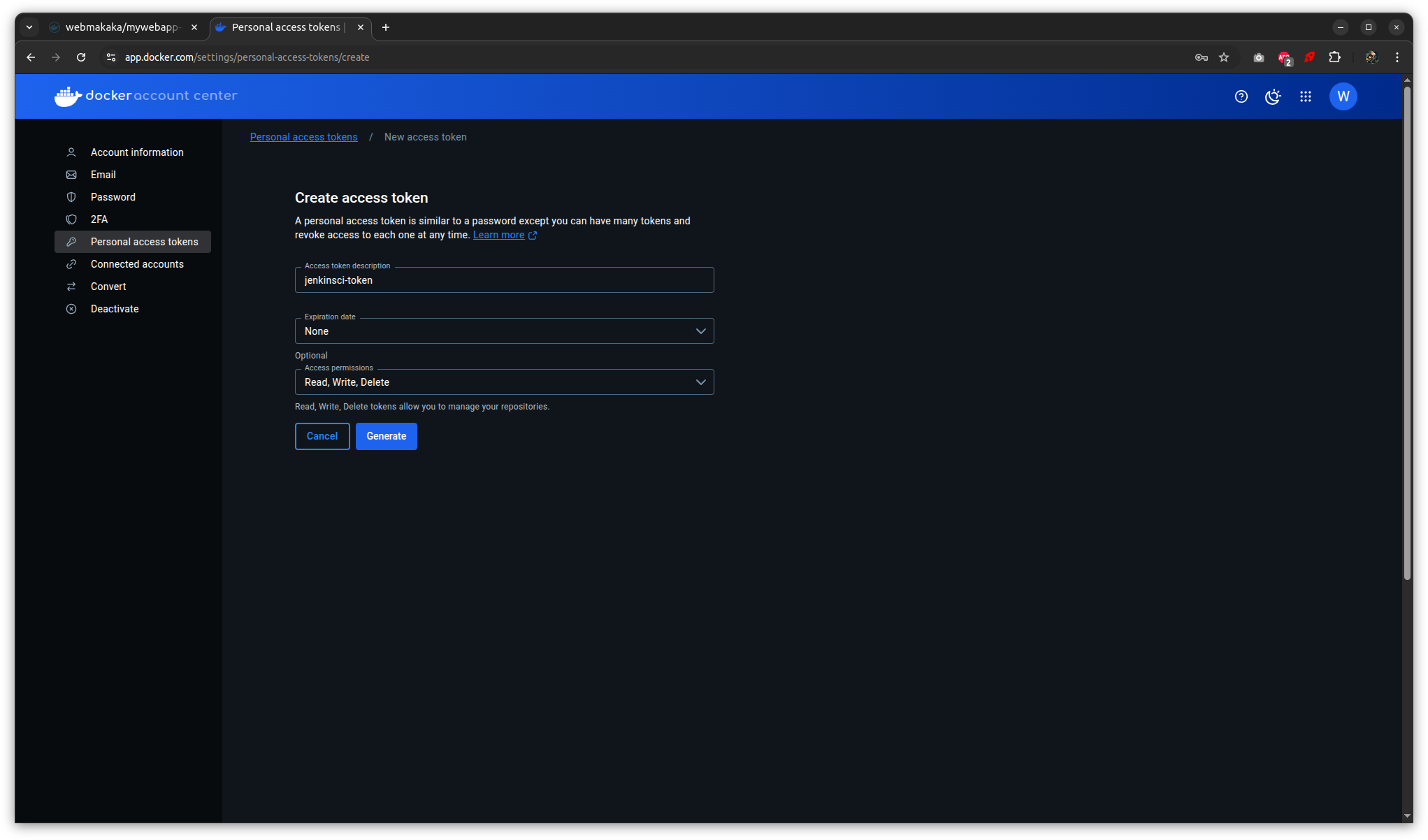

Username: docker login

Password: docker token

ID: dockerhub-creds

Description: Docker hub creds for private repo access

$ kubectl create secret docker-registry my-dockerhub-secret \
    --docker-username=${DOCKER_LOGIN} \
    --docker-password=${DOCKER_TOKEN} \
    --docker-email=${DOCKER_EMAIL}

mywebapp-deployment.yaml

Положили в репо, рядом с jenkinsfile

apiVersion: apps/v1
kind: Deployment
metadata:
  name: mywebapp-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: mywebapp-deployment
  template:
    metadata:
      labels:
        app: mywebapp
    spec:
      containers:
        - name: mywebapp-container
          image: webmakaka/mywebapp-ci:latest
          imagePullPolicy: Always
          ports:
            - containerPort: 8080
        imagePullSecrets:
        - name: my-dockerhub-secret

mywebapp-service.yaml

Положили в репо, рядом с jenkinsfile

$ cat << 'EOF' | kubectl apply -f -
apiVersion: v1
kind: Service
metadata:
  name: mywebapp-service
spec:
  selector:
    app: mywebapp
  type: NodePort
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080
      nodePort: 30080
EOF

jenkinsfile

Не проверялось!!!

pipeline {
    agent any
    stages {
      stage('Clone Repository') {
        steps {
          git branch: 'main',
          url: 'https://github.com/wildmakaka/cats-app.git',
          credentialsId: 'GHA'
          }
      }
      stage('Build Final Production Image') {
        steps {
          script {
                sh "docker build -t wildmakaka/cats-app:latest ."
              }
            }
          }

      stage('Build Docker Image') {
        steps {
          script {
                // Log in to Docker Hub
                withCredentials([usernamePassword(credentialsId: 'dockerhub-creds', usernameVariable: 'DOCKER_USER', passwordVariable: 'DOCKER_PASS')]) {
                  sh 'docker login -u $DOCKER_USER -p $DOCKER_PASS'

                }

                  // Tag the image
                  sh 'docker tag webmakaka/jenkinsci-demo:latest webmakaka/jenkinsci-demo:latest'

                  // Push the image to Docker Hub
                  sh 'docker push webmakaka/jenkinsci-demo:latest'
              }
            }
          }

      stage('Apply Deployment to Kubernetes') {
        steps {
          script {
                  // Push the image to Docker Hub
                  sh 'kubectl apply -f mywebapp-deployment.yaml'
                  sh 'kubectl apply -f mywebapp-service.yaml'
              }
            }
          }
    }
    post {
      always {
        cleanWs()
      }
  }
}
